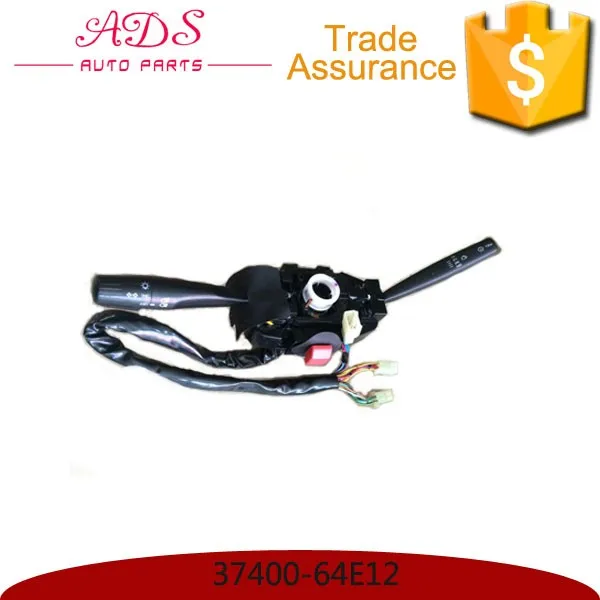

Dimmer light switch light OEM 37400-64E12 for Swift
$ 5.00 ~ $ 44.00/piece
1/piece
(Min. Order)
Quick Details
OEM：
Refuse
Sample:
Refuse
Port:
-
Payment:
Other
Place of Origin：
China
Supply Ability：
1 piece per day
Quick Details
- PortGuangzhou
- Payment TermsL/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal
- Supply Ability10000 Piece/Pieces per Month
- Car MakeFor Swift
- Warranty12
- Place of OriginChina
- SizeStandard Size
- OE NO.37400-64E12
- Model Number37400-64E12
- Sample orderAcceptable
- Brand Name37400-64E12
- OE NO37400-64E12
- TypeHeadlight Switch
- Car makeFor Swift
- CommodityHeadlight Switch
- Packagingneutral, others
- Model37400-64E12
- StockYes
- Delivery DetailShipped in 7 days after payment
- Packaging DetailOur brand AKOK packaging or neutral packaging, welcome to OEM!
Shipping fee
Shipping fee
Product Description
With 4 functions, turning indicator, flash, off-delay, and reduce light.
Great add-on-item for controlling headlamps, DRL, or side lights.
Allow you to connect your DRL lights so that when you start the car the lights turn on.
Suitable for most 12V vehicles without decoding. Used for lights under 30W.
Great add-on-item for controlling headlamps, DRL, or side lights.
Allow you to connect your DRL lights so that when you start the car the lights turn on.
Suitable for most 12V vehicles without decoding. Used for lights under 30W.
Product Specification
Red-Battery Positive
Black-Battery Negative
Blue-ACC. The DRL light will turn on when the car is started and will be delayed for 28s to turn off when the car is off to light up your way home.
White-Headlight. When the headlight is on at night, its brightness will be reduced.
Green-Strobe/Horn. The headlight will strobe when the horn is honked. This wire can be put aside if the strobe function is not in need.
Yellow-Left and right turn light.
Black-Battery Negative
Blue-ACC. The DRL light will turn on when the car is started and will be delayed for 28s to turn off when the car is off to light up your way home.
White-Headlight. When the headlight is on at night, its brightness will be reduced.
Green-Strobe/Horn. The headlight will strobe when the horn is honked. This wire can be put aside if the strobe function is not in need.
Yellow-Left and right turn light.
Package Includes
1 Set DRL Controller
Dimmer Switch Basics
Most cars have two dimmer switches which work in different ways. One switch inside the car controls the dashboard lights and instrument patterns, adjusting them from a bright glow to a dim smolder. Another dimmer switch controls the headlights, switching them between extremely bright high beams, bright low beams, and dimmer parking lights. Some cars also have a third dimmer switch that controls the brightness of in-cabin lights, allowing passengers to turn on low lights when the car is driving so as not to disturb the driver.
Instrument panels
The instrument panels in a car are usually controlled by a variable resistor or varistor. A resistor is a device that resists the flow of electricity. This resistance slows down the flow of electric current. When a resistor is stuck into a light circuit, it decreases the brightness of the bulb, since less electricity flows to it. A variable resistor has a ribbon of resistive material between two contacts. When the dimmer is turned down, the contacts slide apart. The electricity has to slide through more resistive material, so the overall resistance increases, dimming the lights. Adjustable cabin lights use the same system.
Headlight Dimmers
Headlight dimmers work differently. The dimmer switch controls two separate circuits. When the normal lights are turned on, the dimmer sends a small current to an electric switch called a relay. This current closes the switch, turning on the normal headlights. When the dimmer switch is turned to high beams, it triggers a different relay, turning on the bright high beam headlamps. For parking lights, the normal driving lights are used, only with an added resistor to dim the light.
